Oracle Service Bus (OSB) to MuleSoft
If you’ve spent years mastering Oracle Service Bus (OSB), switching to MuleSoft might feel like stepping into unfamiliar territory. But what if I told you that many of the concepts you’re used to, like service callouts, variable assignments, and message routing… still exist, just with a fresh set of tools and terminology. In this guide, we’ll bridge the gap between OSB and MuleSoft, showing you how to translate your existing skills into this powerful integration platform.
If you’ve spent years developing integrations using Oracle Service Bus (OSB), you’ve probably mastered concepts like pipelines, proxies, and service callouts. But as businesses increasingly adopt cloud-native solutions and embrace API-led connectivity, platforms like MuleSoft Anypoint Platform have taken center stage.
For developers making the leap from OSB to MuleSoft, the learning curve can feel slightly steep. But here’s the good news: many of the foundational concepts you’re familiar with in OSB exist in MuleSoft, they’re just executed differently.

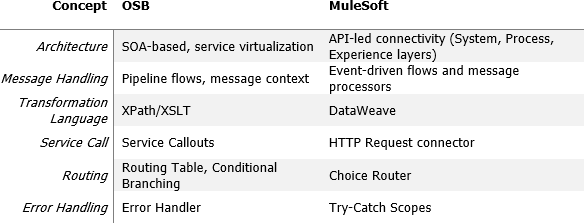

Core Concepts: OSB vs. MuleSoft
Feature-by-Feature Breakdown: OSB Actions vs. MuleSoft Components
In OSB, you’re used to working with Actions; predefined operations like Assign, Service Callout, and Routing. These actions are the building blocks of your message flows.
In MuleSoft, the equivalent building blocks are called Components or Processors. Instead of XML-based actions, MuleSoft uses a graphical interface to configure processors like Set Variable, HTTP Request, and Choice Router.
In this section, we’ll compare these equivalents side by side, helping you recognize familiar patterns and adjust your development approach quickly.

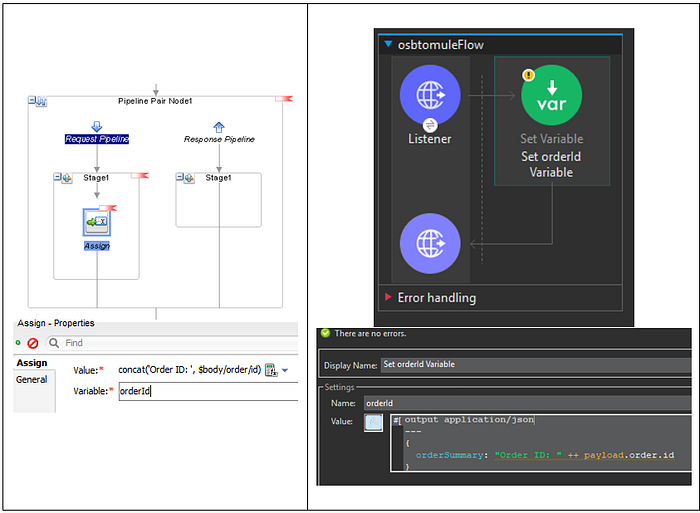

1. Assign (OSB) vs. Set Variable (MuleSoft)
In OSB, the Assign action is used to set or update the value of variables within the message context. You typically use XPath to extract, manipulate, or assign data from the payload.

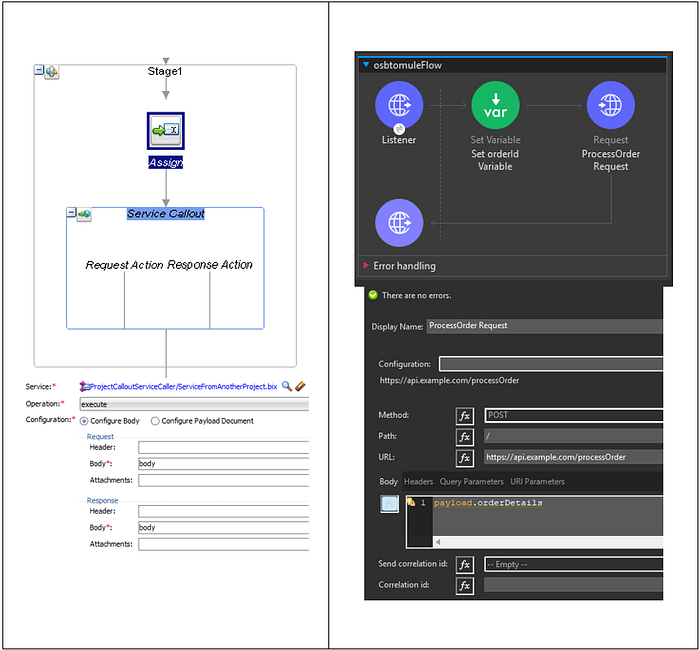

2. Service Callout (OSB) vs. HTTP Request (MuleSoft)
In OSB, the Service Callout action allows you to synchronously invoke external web services (SOAP or REST) and process their responses. In MuleSoft, the HTTP Request component performs a similar job but offers more flexibility for modern APIs, including advanced authentication.

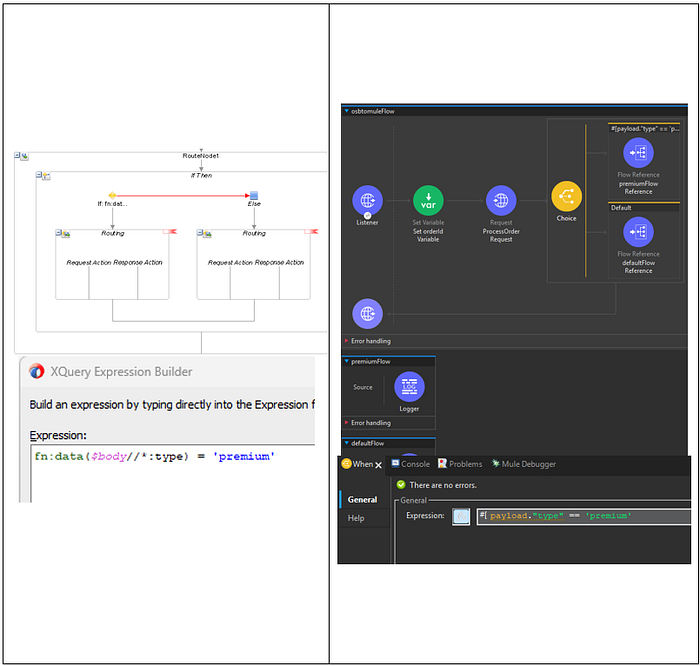

3. Routing (OSB) vs. Choice Router (MuleSoft)
In OSB, conditional routing is done using if/else conditions or routing tables. You direct the message to the appropriate service endpoint based on certain conditions.

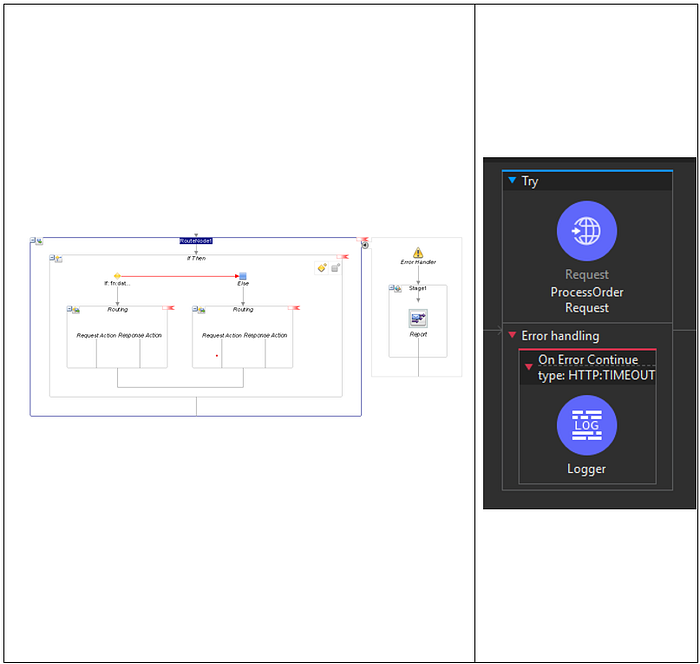

4. Error Handler (OSB) vs. Error Handling Scope (MuleSoft)
In OSB, error handling is defined using an Error Handler section. It captures exceptions and allows custom error-handling logic. In MuleSoft, you use the Error Handling Scope (On Error Continue, On Error Propagate) to handle exceptions in a more modular way.

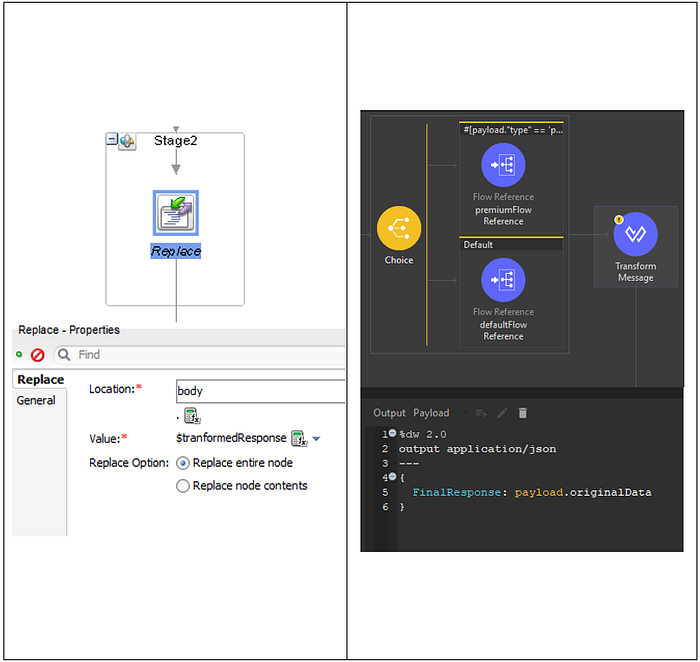

5. Replace (OSB) vs. Transform Message (MuleSoft)
In OSB, the Replace action allows you to substitute parts of the message using XPath or XQuery. In MuleSoft, the Transform Message component uses DataWeave for powerful, format-agnostic transformations.
Wrapping Up: From OSB to MuleSoft
Switching from Oracle Service Bus (OSB) to MuleSoft might seem like stepping into a whole new world at first — that was the feeling I got when I first started, at least. But the reality is, you’ll notice that you’re not starting from scratch; you’re actually leveling up.
The concepts you’ve mastered in OSB — whether it’s routing, transforming messages, or handling errors — are still relevant. They just come with new tools, more flexibility, and a modern, API-led mindset.
Sure, you’ll need to get comfortable with DataWeave — and that can be frustrating at times — and rethink how flows work, but your foundational skills give you a massive head start.
If there’s one takeaway here, it’s this: don’t let the new terminology or shiny UI throw you off. Underneath it all, you’re still solving the same problems — now, just with better tools in your toolkit.
