Mulesoft’s Role in Microservice Architectures

Microservices are great, but what about integration?

Microservices architecture sounds great, right? It’s seen as the key to creating more scalable, flexible and manageable systems. But when we get into it, we are faced with questions such as: “How will all these services be connected to each other?”, ‘How will security and data routing work?’ This is where Mulesoft comes in!

API management, data routing, messaging systems and security mechanisms are critical for the healthy operation of microservices. Mulesoft’s API-led Connectivity approach eliminates these issues by acting as a bridge that facilitates integration between microservices.

How does Mulesoft solve this?

Mulesoft is an Integration Platform as a Service (iPaaS) provider that enables companies to build powerful integrations between disparate systems, data sources and applications. In a microservices-based architecture, Mulesoft offers the following benefits:

• API Gateway: Provides secure and controlled management of microservices.
• Data Routing and Conversion: It organizes the data flow between services and performs format conversions.
• Event Driven Architecture (EDA) Support: Integrates with real-time data processing and messaging systems.
• Lightweight and Scalable: Provides high performance integration solutions with Mule Runtime Engine.

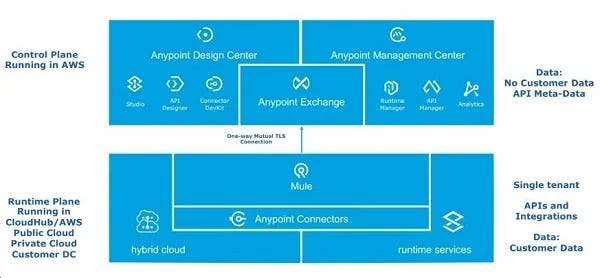

• Anypoint Platform and Anypoint Exchange: It provides comprehensive tools to manage API development, sharing and management processes from a centralized point.

How to Integrate Microservice with Mulesoft?

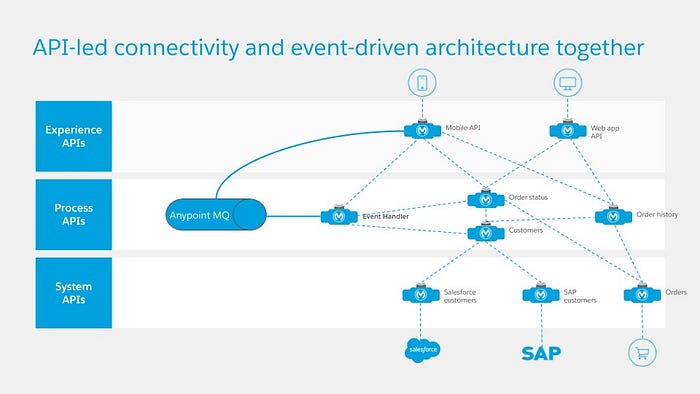

Mulesoft’s API-led Connectivity principle makes the integration between microservices organized and modular. This structure consists of three basic layers:

1. System APIs: APIs that provide access to data sources (for example, an API that connects to a database)
2. Process APIs: APIs that manage business logic and unify data.
3. Experience APIs: APIs optimized for user interface or external services.

Thanks to this structure, we can create a secure and manageable integration while enabling microservices to work independently.

Microservice Integration with Mulesoft in Real Life

Let’s examine Mulesoft’s role in microservice integration through a scenario:

Scenario: A Microservice Managing Customer Information

We want to develop a microservice to retrieve and update customer information from multiple systems on an e-commerce platform. Mulesoft can work in this process as follows:

1. Retrieves customer information from the database via System API.
2. Process API transforms this data and transmits it to an external CRM system.
3. Experience API provides the user with the output in JSON format.

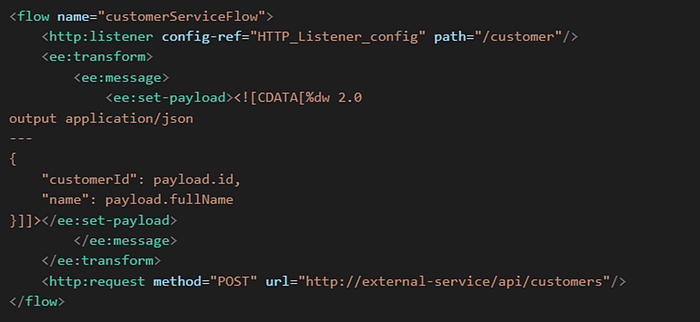

Example Mulesoft Flow:

This flow receives an API call, processes the customer data and forwards it to an external service.

Advantages of Mulesoft over Alternatives

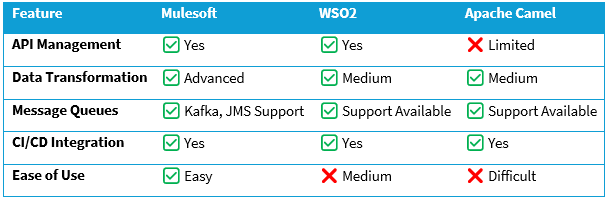

To better understand Mulesoft’s role in microservices architectures, let’s compare it with other integration solutions:

Thanks to its API-led Connectivity approach, Mulesoft offers a powerful integration solution for microservices and stands out with broader integration capabilities than its competitors.

So, what does the future hold for us?

Mulesoft is a powerful platform that facilitates integration, one of the biggest problems of microservices. It has an important place in modern software development processes thanks to the solutions it provides on critical issues such as API management, data routing, compatibility with event-driven architectures and secure communication.

Especially with tools such as Anypoint Platform and Anypoint Exchange, organizations can manage their APIs from a central point, create reusable API components and accelerate integration processes.

In the future, GraphQL, Service Mesh integrations and AI-powered data flow management are expected to play an important role in Mulesoft’s development roadmap. As microservices become more widespread, the need for powerful integration solutions will increase and Mulesoft will continue to be one of the leading platforms in this field.
